Siena

Siena is a comprehensive module for DAB/DAB+ radio. It has a reduced form factor based on the highly integrated Kino 4 digital radio System on a Chip (SoC)

  • Description

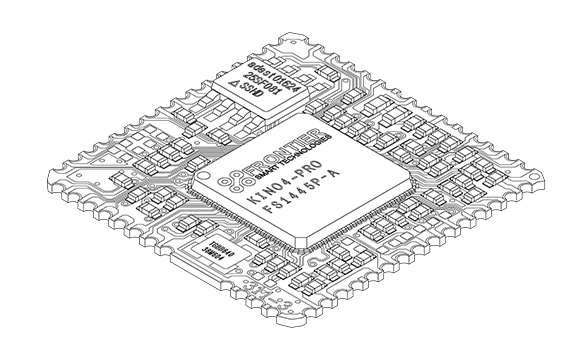

    Siena is Frontier reduced form factor module based on the highly integrated Kino 4 digital radio System on a Chip (SoC).
    With no bulky connector (the module is soldered directly to the application PCB) Siena is the world’s smallest DAB/DAB+/FM radio module. Designed to provide digital radio functionality to customer products, Siena offers a high-performance, low-cost solution to a wide range of digital audio products.

    Capable of supporting a full colour display and Slideshow technology. Slideshow allows colourful displays to run alongside the radio station’s audio to provide extra information, such as, track details, web information, weather maps or traffic updates.

    Siena can be incorporated into customer audio systems acting as a slave digital radio system for host MCUs or as the master processor. In addition, Siena introduces a host of state-of-the-art technologies to optimise power consumption, RF and audio performance to provide a market leading end-user experience.

  • Applications

    Colour display radios

    Mono display radios

    Portable radios

    Clock radios

    Automotive digital radio adaptors

    Handheld radios

    Home audio systems

    Soundbars

    Headphones

  • Features

    Kino 4 and Kino 4 Pro SoC features

    Built-in flash memory

    UART/SCB (I2C compatible) control interface

    On-chip audio DAC with analogue output

    Digital audio output – I2S (slave mode only)

    SCB (I2C compatible) interface

    Keypad and rotary encoder support

    Configurable general purpose I/O (GPIO)

    Multi-purpose ADCs and PDM/PWM out

    Temperature range:

      • Operation: 0 to +70°C
      • Storage: -40 to +85°C
  • Benefits

    Users benefit with enhanced performance and functionality

    Fully compliant to DAB+ standards and Digital Tick Mark certified

    Highly integrated and optimised solution to allow reliable products to be created in low time

    Designed to power all major categories of digital radio device

    Supports all major digital radio broadcast standards

    Supports all digital and FM radio frequencies
